YAMAHA AC5MVN DETAILS

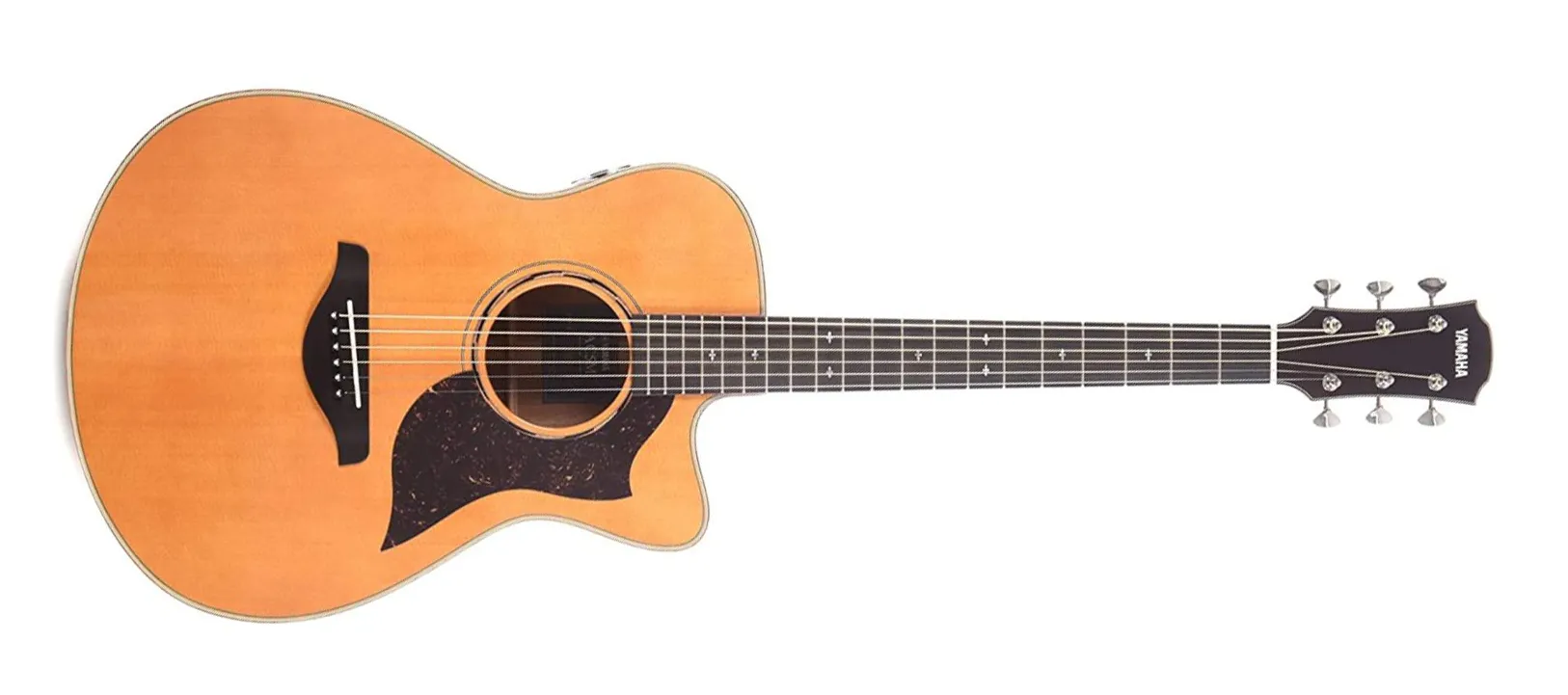

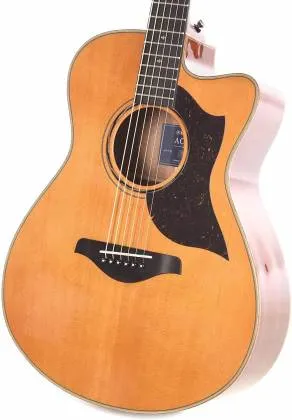

The Yamaha AC5M VN is an acoustic/electric guitar in a concert cutaway body, featuring a solid sitka spruce top and a mahogany body with natural gloss finish.

The single cutaway body was developed with a scalloped bracing for louder, richer acoustic sounds and allows players unfettered access to the higher frets. The African mahogany 3-ply neck features an ebony fingerboard with 20 frets and provides a comfort while playing.

For electronics, the Yamaha AC5M is outfitted with a System71 preamp and SRT piezo pickups to ensure solid plugged-in performance. The preamp offers several advanced features including a volume control, a 2-band EQ, auto feedback reduction, and a blend control plus mic selection. The Yamaha AC5M ships with a soundhole cover and a hex wrench.

SRT2 Electronics
From a piezo sound that cuts through a mix, to a warm, pure, acoustic sound that is recorded using vintage microphones in the recording studio, the SRT2 pickup allows you to reproduce a sound that you can really use on stage. With the SRT2, you can mix these two sounds to attain the exact balance you want to achieve, and a distinctive tone.

SRT Pickup
Yamaha's proprietary SRT pickup design uses individual elements for each string, to give an ultra-clear, ultra-wide bandwidth signal with far better dynamic response and tonal accuracy than a regular, ribbon-type piezo pickup.

High Comfort Neck
Extensive research with players, luthiers and guitar techs has given the A-Series the feel and playability that today's acoustic-electric players want. Whether switching from electric to acoustic onstage, recording a session with intricate open tunings, or practicing at home. These superb guitars feature a straighter neck taper for easier high-fret playing, and hand-rolled fingerboard edges to achieve a played-in feel.

Features:

• 6-string concert-sized acoustic-electric with traditional western cutaway in vintage natural finish
• Solid Sitka spruce top and solid mahogany back and sides for bright, warm tone
• SRT2 system allows you to blend between piezo and SRT2 preamp signals for a personalized sound
• Handmade in Japan with unparalleled built quality and attention to detail

Specs:

• Body Shape: Concert body cutaway
• Scale Length: 25.6" / 650.0 mm
• Body Length: 19.6" / 497.0 mm
• Total Length: 40.9" / 1,038.0 mm
• Body Width: 15.0" / 380.0 mm
• Body Depth: 3.9 to 4.7" / 100.0 to 120.0 mm
• Nut Width: 1.7" / 43.0 mm
• String Spacing: 0.4" / 11.0 mm
• Top Material: Solid sitka spruce with scalloped bracing

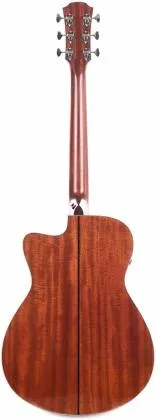

• Body Material: Solid mahogany
• Neck Material: African mahogany 3ply
• Fingerboard Material: Ebony
• Fingerboard Radius: 15.7" / 400.0 mm
• Bridge Material: Ebony
• Nut Material: Tusq
• Saddle Material: Tusq
• Bridge Pins: Black ABS with white dot

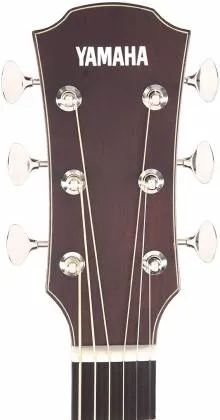

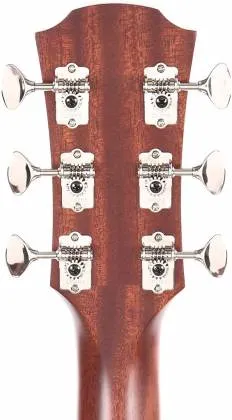

• Tuners: Chrome Gotoh open-gear tuners
• Body Binding: Mahogany cream
• Soundhole Inlay: Rosewood mahogany black white
• Pickguard: Tortoise pattern
• Body Finish: Gloss
• Neck Finish: Matte
• Electronics: SYSTEM71 SRT piezo pickup
• Controls: Vol/mic select (2 types), treble, bass controls, SRT-piezo blend AFR
• Connections: Line Out
• Accessories: Soundhole cover, hex wrench

The African mahogany 3-ply neck features an ebony fingerboard with 20 frets and provides a comfort while playing.
